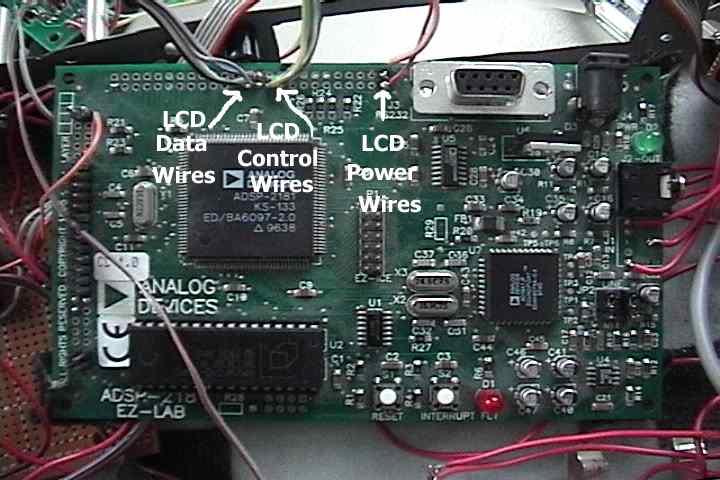

| Color | LCD | EZ-Kit Lite | Hex Val | Meaning | ||
| Pin # | Name | Pin # | Name | |||

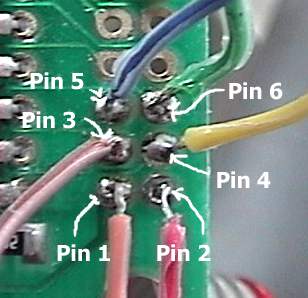

| Orange | 1 | GND | 50 | GND | Ground | |
| Red | 2 | +5V | 49 | Vcc | Power Source | |
| Brown | 3 | Vee | -- | Pot Wiper | LCD Contrast | |
| Yellow | 4 | RS | 29 | PF4 | 0x10 | Register Select |
| Blue | 5 | R/W_ | 31 | PF6 | 0x40 | Read/Write_ |
| Green | 6 | E | 30 | PF5 | 0x20 | Enable |

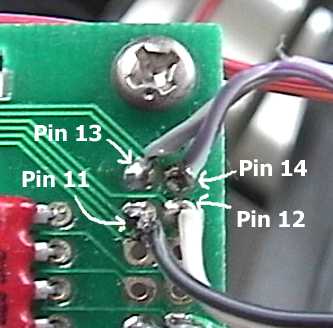

| Black | 11 | DB4 | 25 | PF0 | 0x01 | Data Bit 0,4 |
| White | 12 | DB5 | 26 | PF1 | 0x02 | Data Bit 1,5 |
| Gray | 13 | DB6 | 27 | PF2 | 0x04 | Data Bit 2,6 |
| Purple | 14 | DB7 | 28 | PF3 | 0x08 | Data Bit 3,7 |
